Static Control - เครื่องเช็คไฟฟ้าสถิตย์

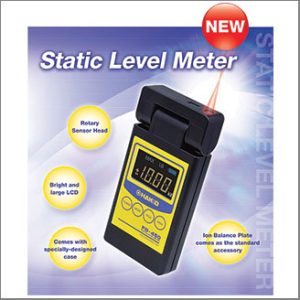

  • HAKKO FG-450-03

    ,

    HAKKO FG-450-03
    ฿44,569.00
    เครื่องวัดไฟฟ้าสถิตย์ ยี่ห้อแฮกโก้ รุ่น FG-450-03

    HAKKO FG-450 (With carrying case)+ Grounding wire + Strap + 006P type 9V dry cell battery (For trial) + Ion Balance Plate (With screw) + Instruction Manual

    Power supply:  006P 9V dry battery
    Measurable potential range  Normal mode: 0.00 to ±19.99kV (resolution : 0.01kV)
    Ion balance mode : 0.000 to ±1.999kV (resolution : 0.001kV)
    Signal detection method: Oscillating chopper method
    Display refresh frequency:  0.5seconds
    Measurement precision:  ±10% of reading ±2 digit
    Continuous operating limit:  Approx. 10hour (with alkaline battery)
    Measurement distance:  30mm (between object being measured and sensor)
    Measurement distance adjustment:  Red LED beam focusing method
    Sensor head rotation angle:  180º (in increments of 45º)
    Display: LCD display with built-in backlight
    Polarity display: Positive polarity/negative polarity display
    Mode switching: Ion balance/static electricity measurement modes
    Battery check:  Remaining charge displayed in display panel
    Operating environment:  0 to 40ºC, 20 to 70%RH (without condensation)
    Dimensions:  68(W)× 138(H)× 22(D)mm.
    Weight: 160g

    Specification Download HAKKO FG-450



    Quick View
  • HAKKO FE-510 100V-240V

    ,

    HAKKO FE-510 100V-240V
    ฿21,500.00
    เครื่องวัดไฟฟ้าสถิตย์ ยี่ห้อแฮกโก้ รุ่น FE-510-01 100V-240V

    AC adapter output/Capacity DC24V 10VA
    Discharge method: High frequency AC method
    High voltage output: AC2,000V approx.
    Ion balance: ±10V or less
    Static elimination time
    – Straight louver : approx.1.5 seconds
    – Wide-angle louver : approx.2.5 seconds
    High voltage abnormality output (ALARM)
    – MOS FET relay non-voltage contact output
    – Maximum current : 100mA
    – Applied voltage : DC30V or less
    Cleaning check output (C.C)
    – MOS FET relay non-voltage contact output
    – Maximum current : 100mA
    – Applied voltage : DC30V or less
    Air flow: 1.5 to 3.0m3/min.
    Air flow out angle: Vertically 360ºvariable (every 10º)
    Quantity of produced ozone: 0.04ppm or less
    Operating environment
    Ambient temperature : 0 to 40ºC
    Ambient humidity : 15 to 65% (without condensation)
    Material for discharge needles: Tungsten
    Dimentions: 150(W)×182(H)×50(D)mm (without stand)
    Weight: Approx. 0.79kg

    Specification Download HAKKO FE-510



    Quick View

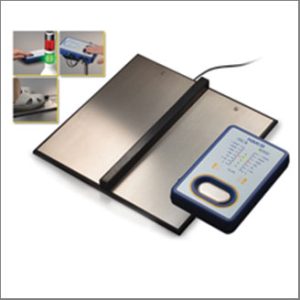

  • HAKKO FG-460-03

    ,

    HAKKO FG-460-03
    ฿22,650.00

    เครื่องวัดไฟฟ้าสถิตย์ ยี่ห้อแฮกโก้ รุ่น FG-460-03  100-220V

    Unit + Mounting base + AC adapter + Test plate + Mounting screw (qty 2) + Pan head screw (qty 2) +  Wood screw (qty 2) + Instruction manual.

    Rating:  DC24V 33mA
    Measurrment voltage:  DC20V

    Stand C5032 for FG-460 ชิ้นละ 7,850.-

    Specification Download  HAKKO FG-460 spec

    Quick View
